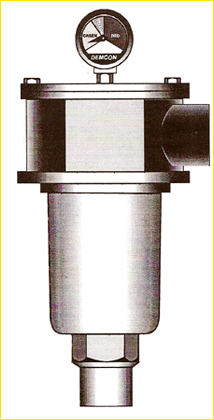

| RETURN LINE FILTER |
| |
Wide range of low cost and low pressure TTFR series of return line filters are available according to the flow capacity and micron ratings. Standard element is 25 micron and 10 micron optional.
APPLICATION
These highly compact designed return line filters can be used in earth moving machinery, mechanical handling, industrial power units, general machine tools, plastic machinery, etc. |
| |
| SALIENT FEATURES |
| |
|
Available in 5 basic models with 200 PSI working pressure (13 Bar) to flow up to 350 LPM. |
 |

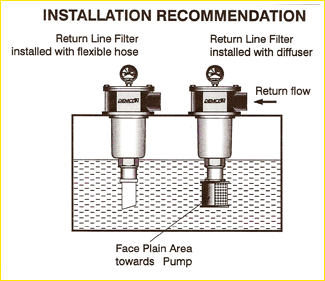

Direct, Tank top Mounting. |
|
Built-in by-pass check valve setting at 15 PSI standard. Other settings are available on request. |
|
Powerful ceramic magnets fixed on the filter head attracts ferrous particles, before they attract valuable system components, thus extends pump and system life. |
|
| |
| IMPORTANT INSTRUCTIONS |
| |
The filter element requires periodic maintenance. When clogged due to contamination, the indicator shows red. In this condition the element should be immediately replaced to |
|
|
 |
|
avoid the filter by-passing. The replacement element is manufactured from the highest grade of impregnated paper to ensure the accurate micrometer rating of the filter, maintained under all working condition. Optimum filtration efficiency is guaranteed if reputed make replacement element is used. A bypass valve built in to the element's end cap ensures the element will not collapse due to contamination. |
| |
VISUAL CLOGGING INDICATOR is supplied when required. For replacement element with basic model.
Ordering Example: Filter with visual Indicator = TTFR - 04- 50L -25M-VCI |
| |

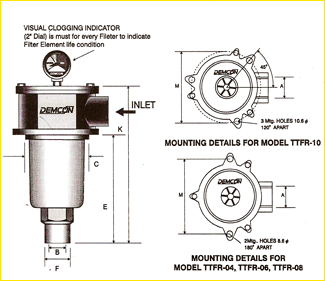

| BASIC MODEL 25 |
BASIC MODEL 10 |
INLET PORT - A BSP |
OUTLET PORT -B BSP |
PIPE SIZE - F |
MTG. HOLE PCD-M mm |
MTG. HOLE -D mm |
BOWL LENGTH E mm |
TOTAL LENGTH K mm |
CUTOUT SIZE -C mm |
TTFR-04-50L- 25M |
TTFR-04 40L-10M |
1/2" |
3/4" |
1" |
96 |
8.6 |
85 |
135 |
68 |
TTFR-06-115L-25M |
TTFR-06-75L-1OM |
3/4" |
3/4" |
1" |
120 |
8.6 |
100 |
160 |
90 |
TTFR-08-160L-25M |
TTFR-08-120L-10M |
1" |
3/4" |
1" |
120 |
8.6 |
140 |
200 |
90 |
TTFR-10-240L-25M |
TTFR-10-190L-10M |
11/4" |
11/4" |
11/2" |
175 |
10.6 |
240 |
320 |
130 |
TTFR-10-350L-25M |
TTFR-10-300L-10M |
11/4" |
11/4" |
11/2" |
175 |
10.6 |
280 |
360 |
130 |
|
| |
| |
| SPECIFICATIONS |
| |
|
Construction: Filter head is made out of LM-24 casting. |
|
Bowl: Made of steel or aluminum. |
|
Seal: Nitrile |
|
Operating Temperature: 30°Cto 90 °C. |
|
Fluid compatibility: Mineral / . petroleum based fluids. |
|
| |
Green, Yellow and Red colour codes are provided on dial. The needle in Green zone indicates normal operation and clean fluid. When the needle enters Yellow zone, the by-pass valve cracks and permits partial flow and when needle is at extreme of Red zone, the by-pass valve is fully opened. |
| |
NOTE:
For general application use 25 M element to avoid back pressure. |
|
|
|
|
| |
