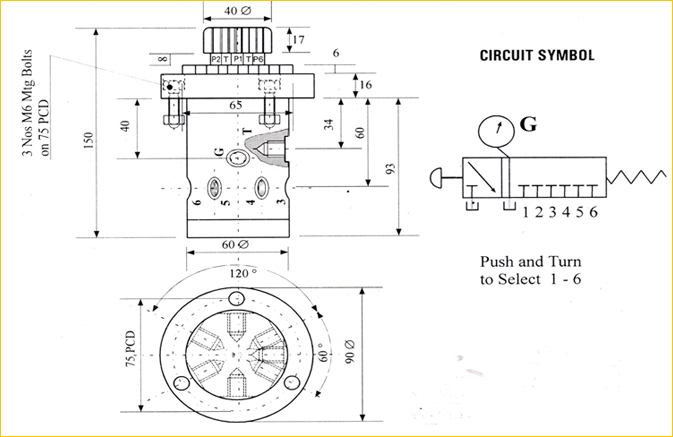

GAUGE ISOLATOR VALVE 6 STATION MODEL – 6s-GIV-PR
The 6 Station unit is designed for panel mounting and is a highly compact unit which saves panel space by reducing number of pressure gauges. Only one common gauge is required to read different 6 system pressures. This unit is very much useful where more than one gauge reading is required and if any of six station is not being used plug the unused ports. If three ports are used plug No.1, 3 and 5 port to balance the valve dynamically.
OPERATION
Turn the Knob for selecting the pressure port and push to read the pressure. In normal condition gauge is vented to tank
SPECIFICATION
All ports ¼ “ BSP high graded cast Iron Body.
Maximum working pressure 3000 P.S.I.
Maximum allowable leakage through tank port 3 to 4 minute at 3000 P.S.I.
