GAUGE ISOLATOR VALVE SINGLE STATION
SPECIAL DESIGN FEATURES
Applicable to all ranges of Hydraulic Equipments.
Maintenance Free, quick and easy to assemble, just fix the screw on the shaft.
Special modifications to customers’ requirement.
Lengthen or shorten or key way bore of hubs available.
Permits angular, parallel and axial offset.
Wide accurately machine surfaces offer easy visual alignment.
Sleeve made of high graded nylon material, resistant to all hydraulic fluids.
Concentricity within 0.0008 inches assures centrifugal and dynamic balance, important at high speed.
Entire range of coupling are available form 0.5H.P to 75 H.P suitable for shaft size 14 mm to 65 mm in diameter.
High degree of factor of safety.
TECHNICAL SPECIFICATION
All Ports ¼ “ B.S.P female thread.
Maximum panel thickness 8 mm.
High grade cast iron body.
Hardened, ground and lapped spool made out of high carbon steel.
Nitrile seal.
Maximum working temperature 30d C to 80dC.
Maximum working pressure 5000 PSI.
Maximum allowable leakage through port 1 to 2 cc per minute at 3000 PSI pressure.(This leakage does not effect any pressure drop in the system.)
OPERATION

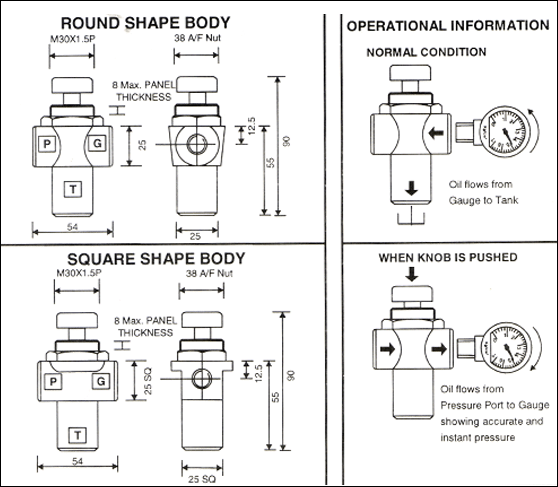

In normal condition fluid is completely isolated from the gauge until the knob is pressed. By pressing the knob fluid is connected directly from pressure port P to gauge port G giving instant and accurate reading on the gauge or the manometer. As the knob is released the spring loaded spool closes the pressure port automatically connecting the gauge port G to drain port T. In operation an orifice (0.8mm dia.) in Gauge Port acts as partial snubber, protecting the gauge from damaging pressure surge of fluid as the knob is pressed.


DO NOT ADJUST THE SPRING RETAINER PLUG. IMPROPER ADJUSTMENT OF THE PLUG MAY CAUSE HEAVY LEAKAGE AND DISTURB THE WORKING PRINCIPLE OF THE VALVE.

ORDERING INFORMATION & MODEL CODE
PART NO SS GIV PR TL
2110 Single Station Gauge isolator Valve Push to Read Twist to Lock
2100 Single Station Gauge isolator Valve Push to Read
