AIR BREATHER


A wide range of low cost Air Breathers are available to meet the entire requirement of the customer. It is observed by several experiments that 70% of the hydraulic systems fail due to contaminated air. Normally atmospheric air contains dirt, water vapor and moisture; they may enter in to the system during suction of the pump. Therefore breather filters are a must for hydraulic systems, ensuring clean air passing in to the reservoir, thus prolonging the life of the system components.

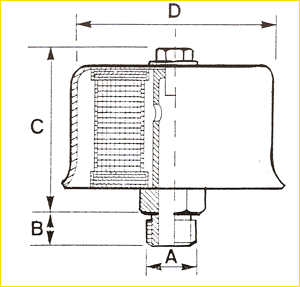

PART NO MODEL FLOW LPM MICRON A B C D
880 ABT-1000L 1000 40 1" BSP 20 65 78
870 ABT-100LM 1000 40 M30X1.5P 20 65 78
868 ABT-750L 750 40 %" BSP 15 65 78
860 ABT-750LM 750 40 M26X1.5P 15 65 78
858 ABT-450L 450 40 1/2" BSP 12 55 50
850 ABT-250L 2'50 40 3/fl" BSP O 12 55 50


NOTE: To clean or replace the filter element, remove the top bolt and breather cap.

IMPORTANT: It is recommended by the manufacturer filter element should be cleaned
or replaced once in six months for better system life.
